Please pay attention to the voltage when placing an order!

Air conditioning kits are divided into 12V and 24V.

Description:

This electric air conditioning system (Inside unit + outside unit) can be installed to anywhere you want. It runs by battery(Generator). Even you got your engine stalled,you still can use this air conditioner. Low noise,energy-saving,environmental protection is the best choice for you. It will help you save thousand dollars on gas every year.

Pay attention:

1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.

2. Remember ! Please screw tightly of the controller board. Otherwise the board will get burnt.

Generator (battery) request:

12V compressor require generator ampere over 100a;

24V compressor require generator ampere over 70A.

About vehicle battery. If you want to use the electric compressor after parking,then your vehicle battery capacity should be large enough. For example,12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

Compressor data:

Compressor style: Semi-closed Horizontal Scroll Compressor

Material: Aluminum alloy

Voltage: DC 12V / 24V

Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC

Current: 45A+-2 / 35A+-2

Displacement: 21cm³/r

Cooling capacity: 1.688KW / 2.465KW

(5731BTU / 8410BTU)

Speed range: 1000 - 2300rpm / 1000 - 3000rpm

Rated power: 550W / 850w

Rated speed: 1800rpm / 3000rpm

Oil: POE / 130ml - 150ml (Oil has already in compressor )

Gas/Refrigerant: R134a

Condensing temperature range: 26.7～68℃

Evaporating temperature range: -10～12.5℃

Refrigerant leakage rate: <14g per year

Suction pipe inner size: Ø18.3mm

Discharge pipe inner size: Ø15.5mm

COP W/W: 3.07 / 2.9

Led blinking:

Blinking 1 times,pause 1 second: Standby mode.

Fast blinking 2 times,pause 1 second: Excessive current,Over 50A.

Fast blinking 3 times,pause 1 second: Locked rotor protection.

Fast blinking 4 times,pause 1 second: Undervoltage protection.

Fast blinking 6 times,pause 1 second: Electric fan fault.

Fast blinking 7 times,pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times,pause 1 second: Compressor over heated protection.

Fast blinking 9 times,pause 1 second: Pressure switch protection.

Cooling performance:

Remark: Speed tolerance ±1%. Actual test cooling capacity data not less than 90% of data in the table. Actual test power rate not exceed 110% of data in the table.
Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °)

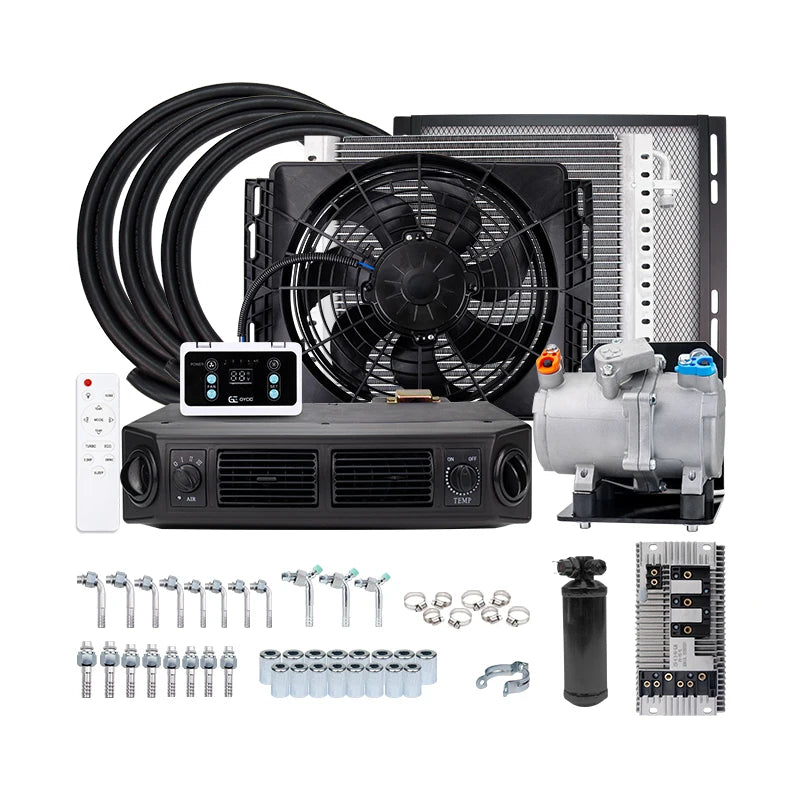

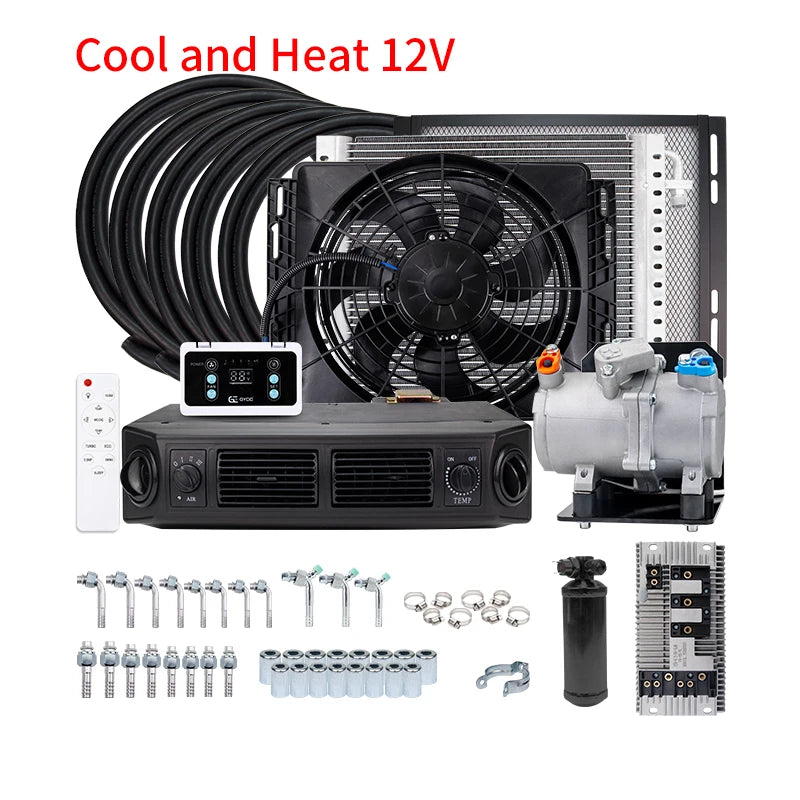

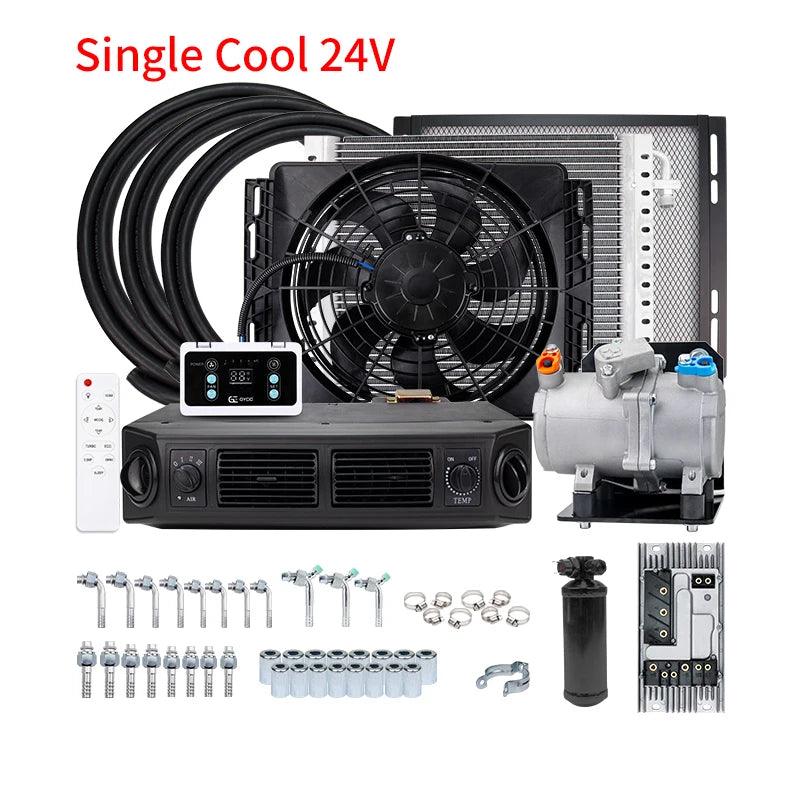

Package & Product Details

Your order is shipped in 2 packages:1 big carton with 4 small boxes inside + 1 separate carton.

Carton 1/2: Contains 4 inner boxes

Inner Box 1:

① 1 x Evaporator with mounting bracket and Remote control

Inner Box 2:

② 1 x Radiator fan / Radiator/ Radiator protector

③1 x dryer

Iner Box 3:

④ 1 x Electric compressor

⑤ Electric compressor control board

⑥ 2 meters x Electric compressor motor cable / dryer cable / 2 meters x Power cable /2 meters x Electric compressor temperature sensor cable /2 meters x Radiator fan cable

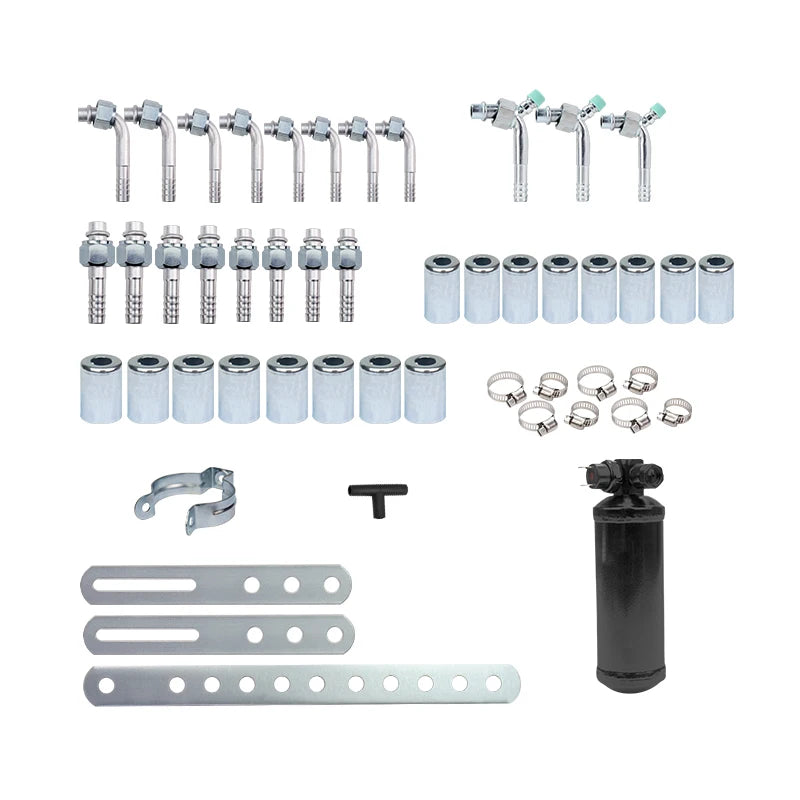

Inner Box 4:

⑦ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting

⑧ 1 x #6 #8 #10 fitting with service port

⑨ 4 x #6 fitting / 2 x #8 fitting / 2 x #10 fitting

⑩ 2 x Electric compressor fittings

⑪ 8 x #6 steel crimp ferrule / 4 x #8 steel crimp ferrule / 4 x #10 steel crimp ferrule

⑫ 8 x hose clips

⑬ 1 x clamp

Carton 2/2: Separate box

⑭ 5 meters x #6 hose/3 meters x #8 hose/5 meters x #10 hose

⑮ 4 meters x heater water hose.(Only the cool and warm evaporator is equipped with heater water hose.)

⑯ Compressor bracket + mounting screws

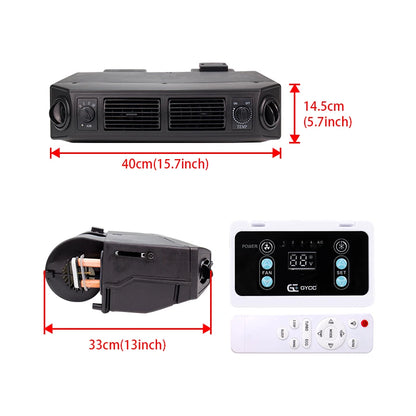

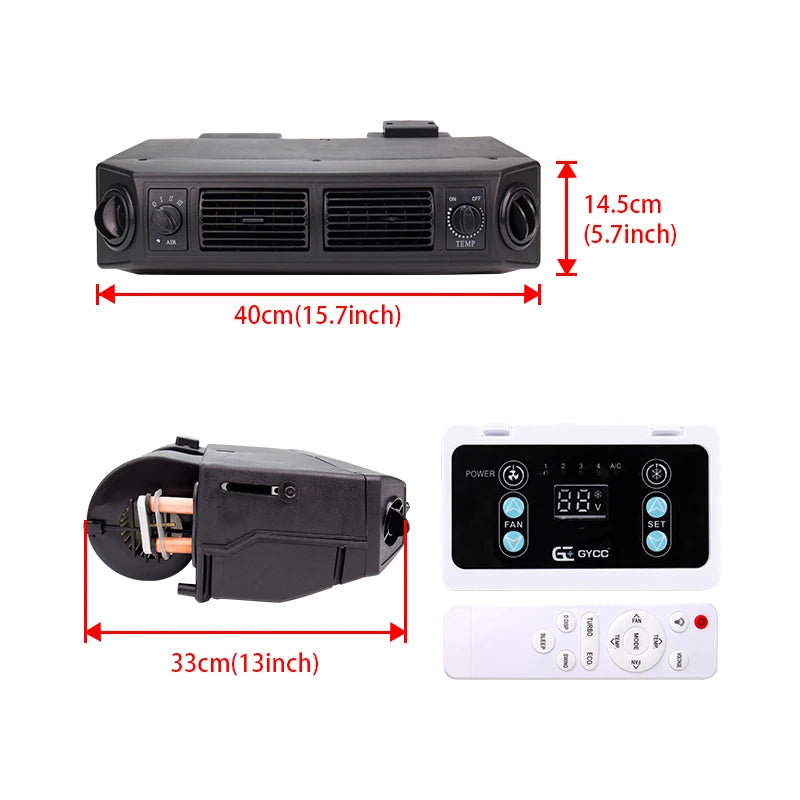

Evaporator

                                                     Blower couldn't be adjusted by two switches ! Adjusted through digital control panel and remote control

1.2 Ton O-ring expansion valve,Size #6 and #10

Strong PP case

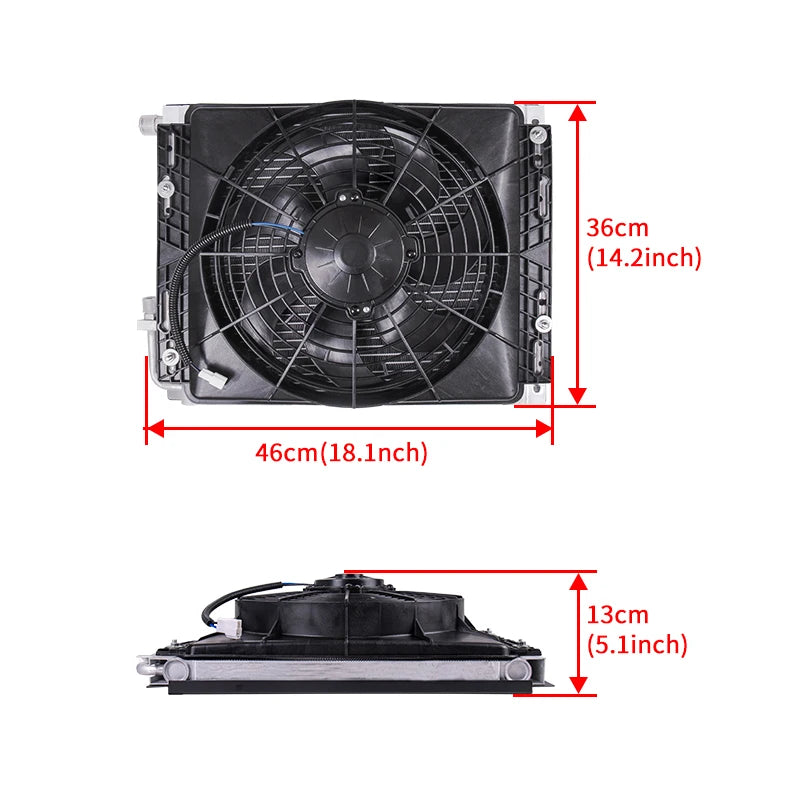

Electric fan

120W strong airflow (pulling air) radiator fan

Radiator protector net for stone attacked.

Radiator with #6 and #8 male O-ring fittings.

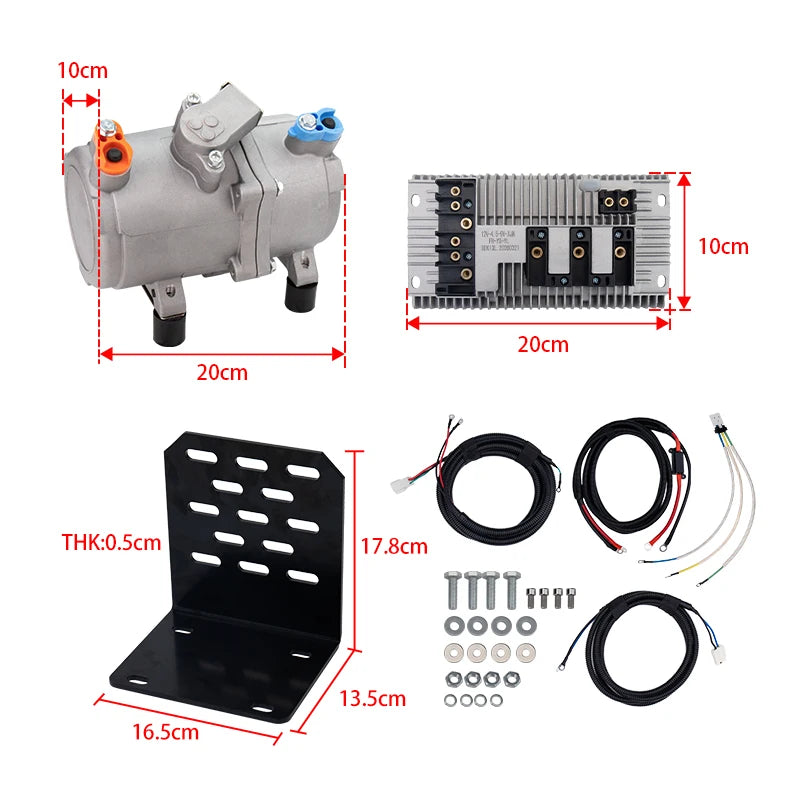

Electric compressor

Four thick rubber leg for shockproof

Four extended cable. From 2 to 12 square millimeter. Safety and qualified

Paired with fixed bracket, thickened steel plate, thickness 5MM, sturdy, durable and corrosion-resistant

Dryer/Hose

Dryer with glass. Size #6 to #6

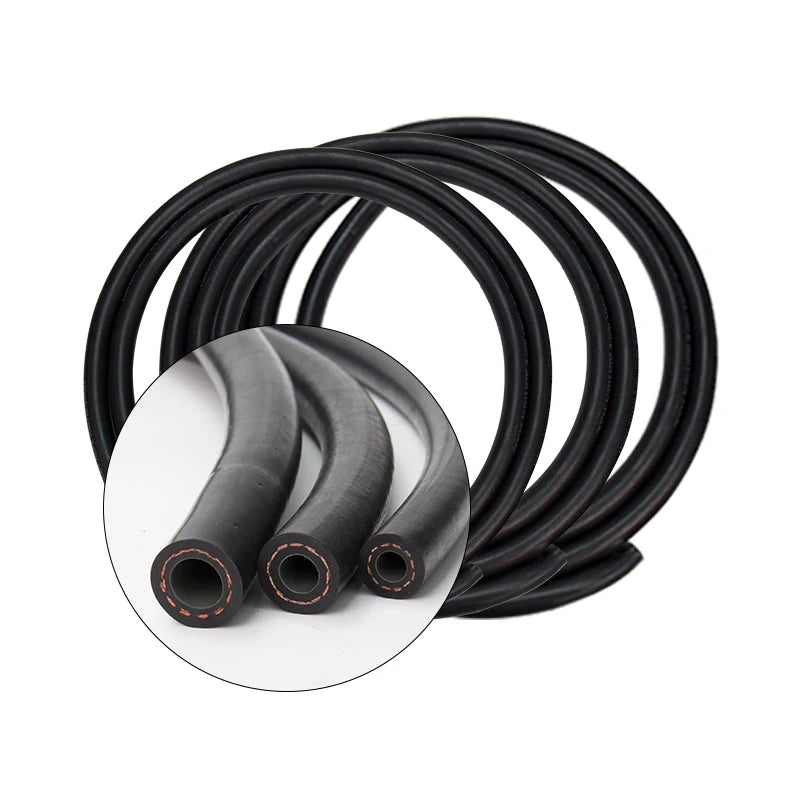

Hose with three layer protection. No leaking and strong.

5/8'' (16mm) internal diameter,Thick: 3.5mm

Temperature: -40° to 130° (-40° to 266°)
