SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Choice: yes

Drive test fuel injector: diagnostic tool

High-concerned chemical: None

Ignition Simulator Tester: Ignition Coil Tester

Item Weight: 0.38KG

Kit List: Tool Box/Bag

Model Name: QDB 5A

Origin: Mainland China

Package box: No storage box

automotive actuator tester: drive detector

car diagnostics tool: PWM drive output

oscilloscope tool: PWM signal generator

stepper motor driver: multimeter diagnostic

vehicle sensor tester: electronic fan drive

QDB4A Upgrade Professional QDB-5A Car Sensor Tester with Oscilloscope PWM Drive Multimeter Ignition Injector Simulator Step Motor Driver Diagnostic Scanner

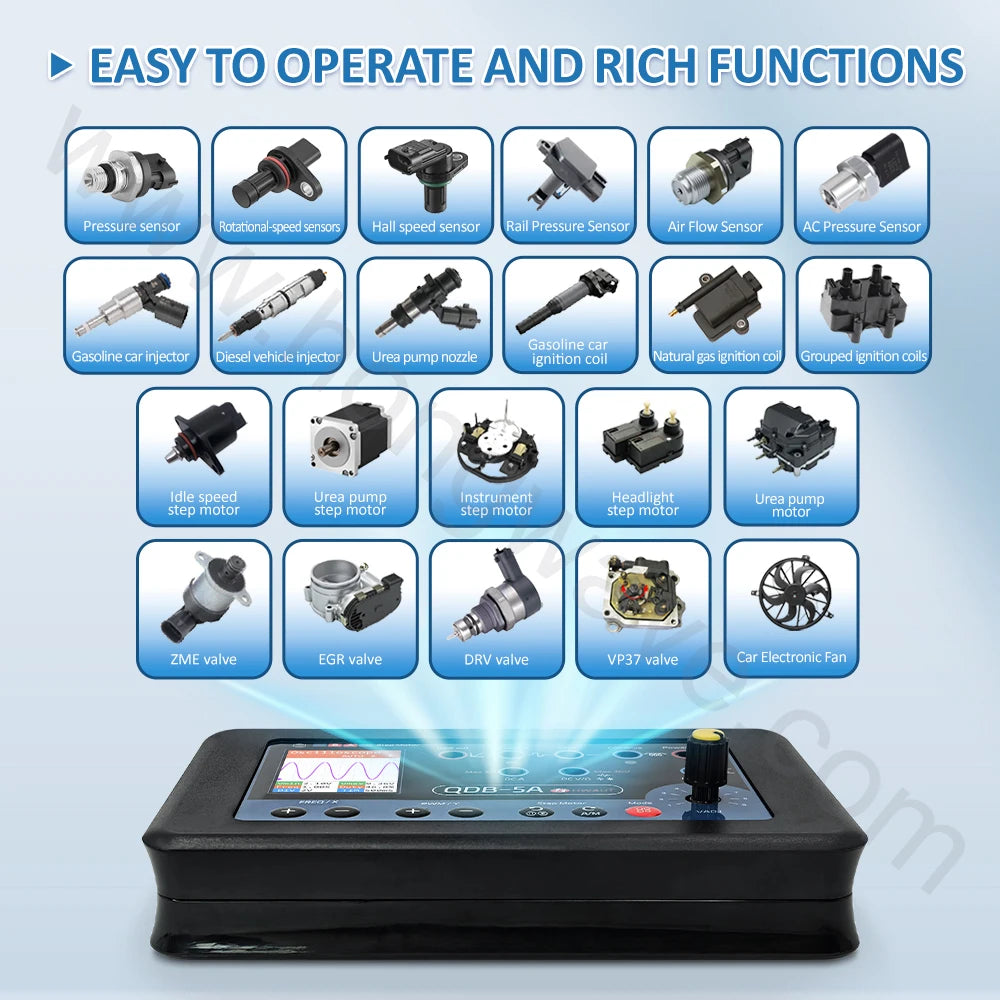

Multi-Function Diagnostic Tool: Combines oscilloscope for signal testing, PWM drive output for solenoids and injectors, stepper motor drive for idle and instrument motors, and signal simulation for sensors like air conditioner pressure and rail pressure; supports quick identification of automotive component issues.

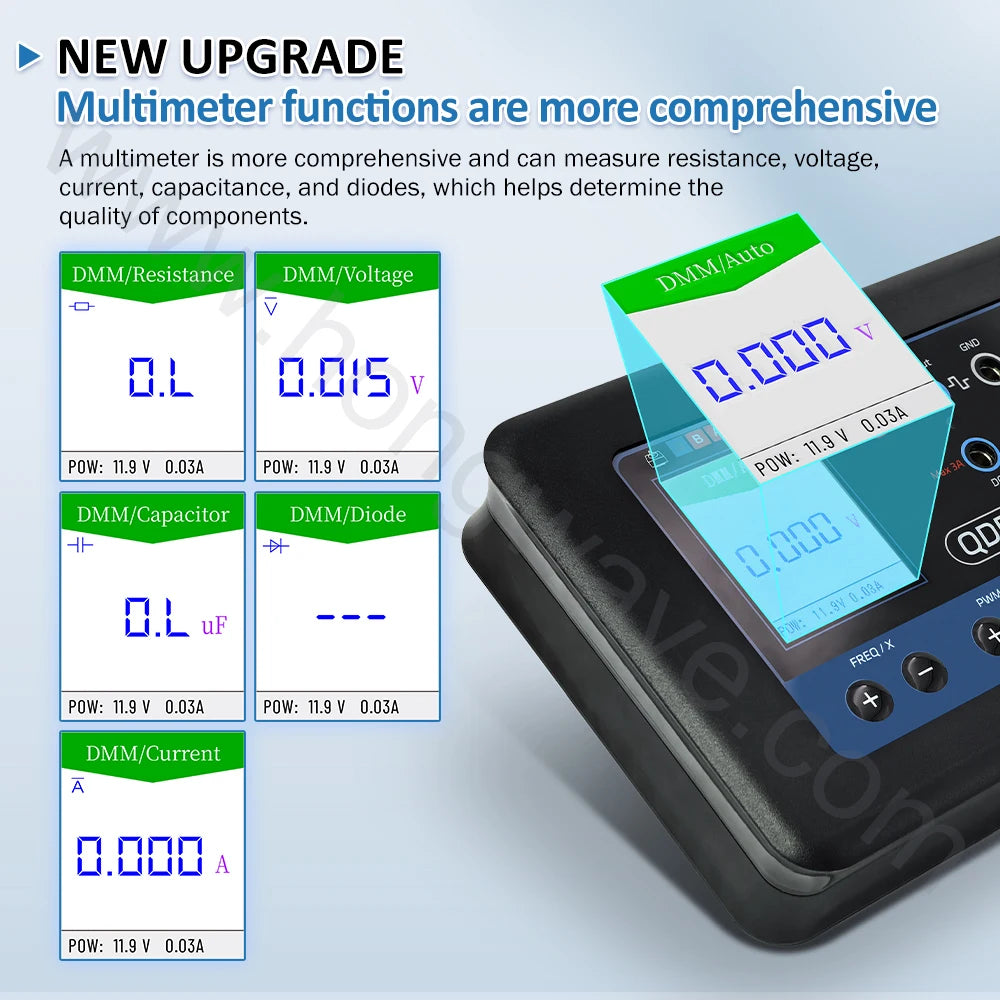

Built-in Multimeter Capabilities: Measures voltage (DC 0-30V), resistance (0-1MΩ), current (0-1.8A), capacitance (10nF-1000uF), and diodes; ideal for precise electrical checks without needing separate tools.

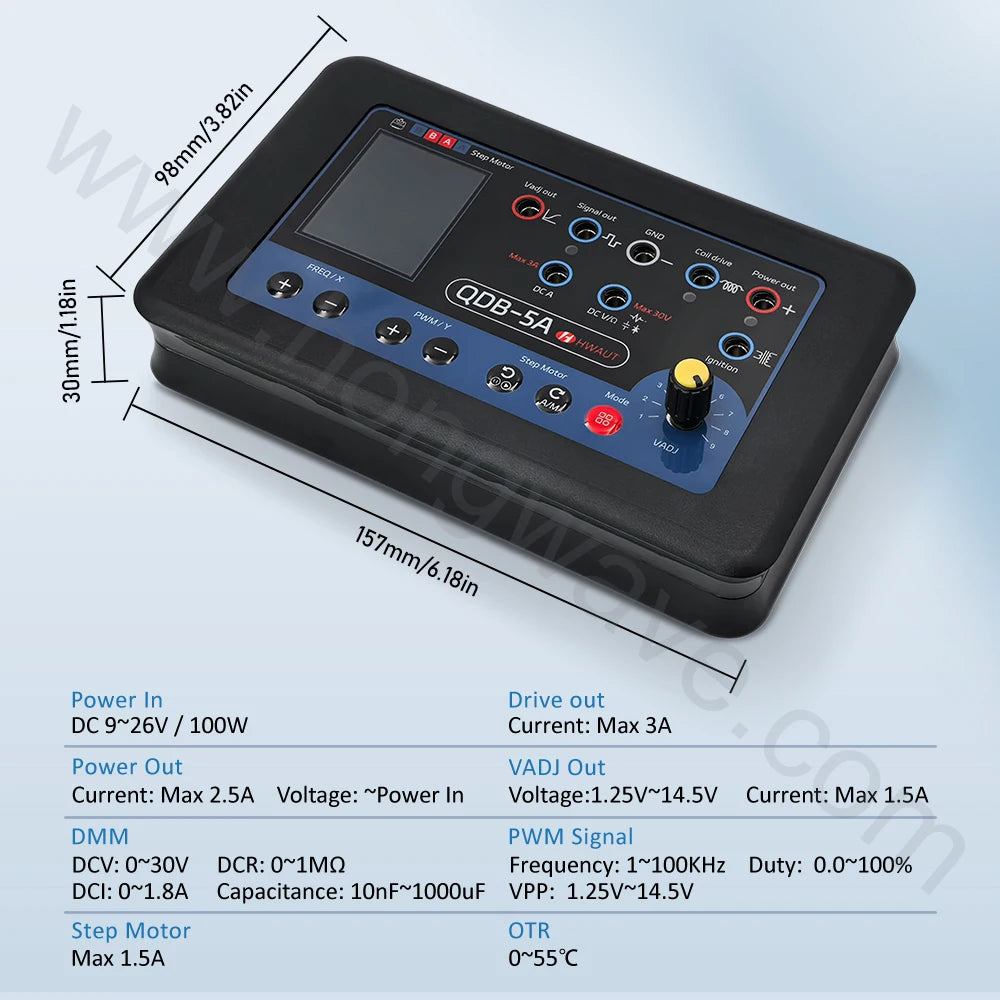

Adjustable PWM and Signal Output: Features frequency range of 1-100kHz, duty cycle 0-100%, and VPP 1.25-14.5V; compatible with 2-wire and 3-wire modes for testing urea pumps, ignition coils, electronic fans, and flow sensors.

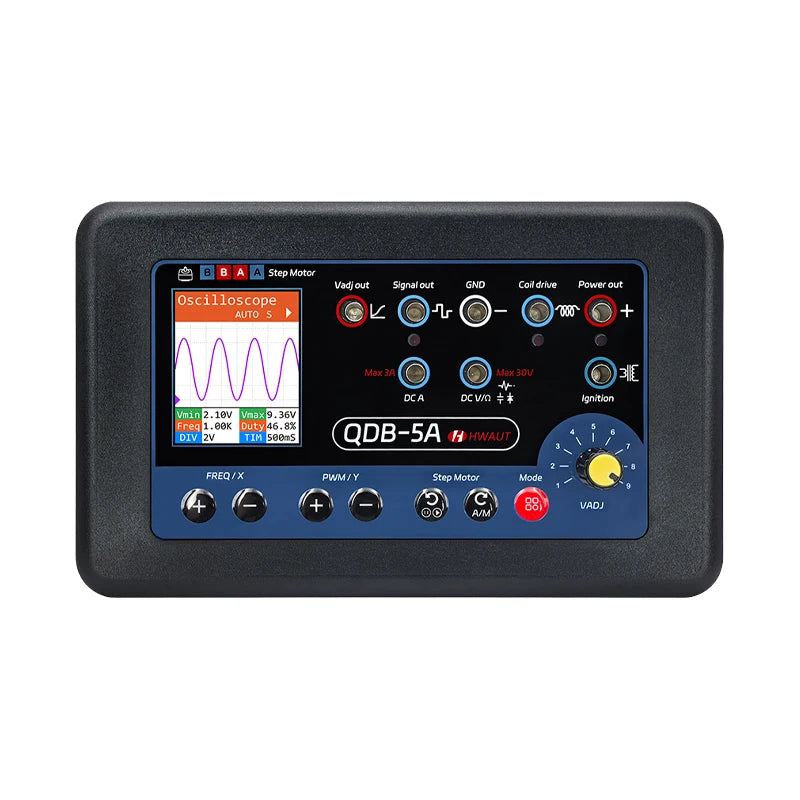

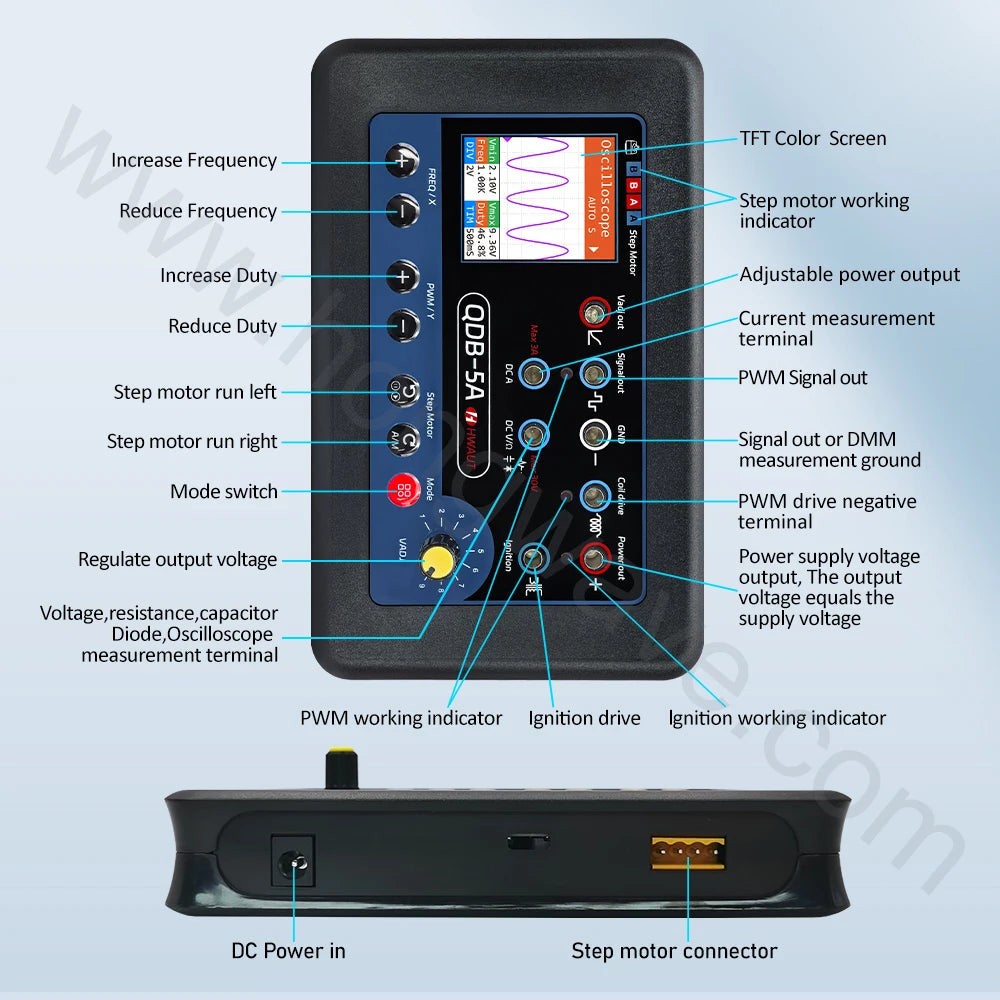

User-Friendly Interface and Controls: TFT color screen displays waveforms and readings; includes mode switch knob, adjustable power output (up to 2.5A), and buttons for frequency/duty adjustments; powered by DC 9-26V input for 12V/24V vehicle systems.

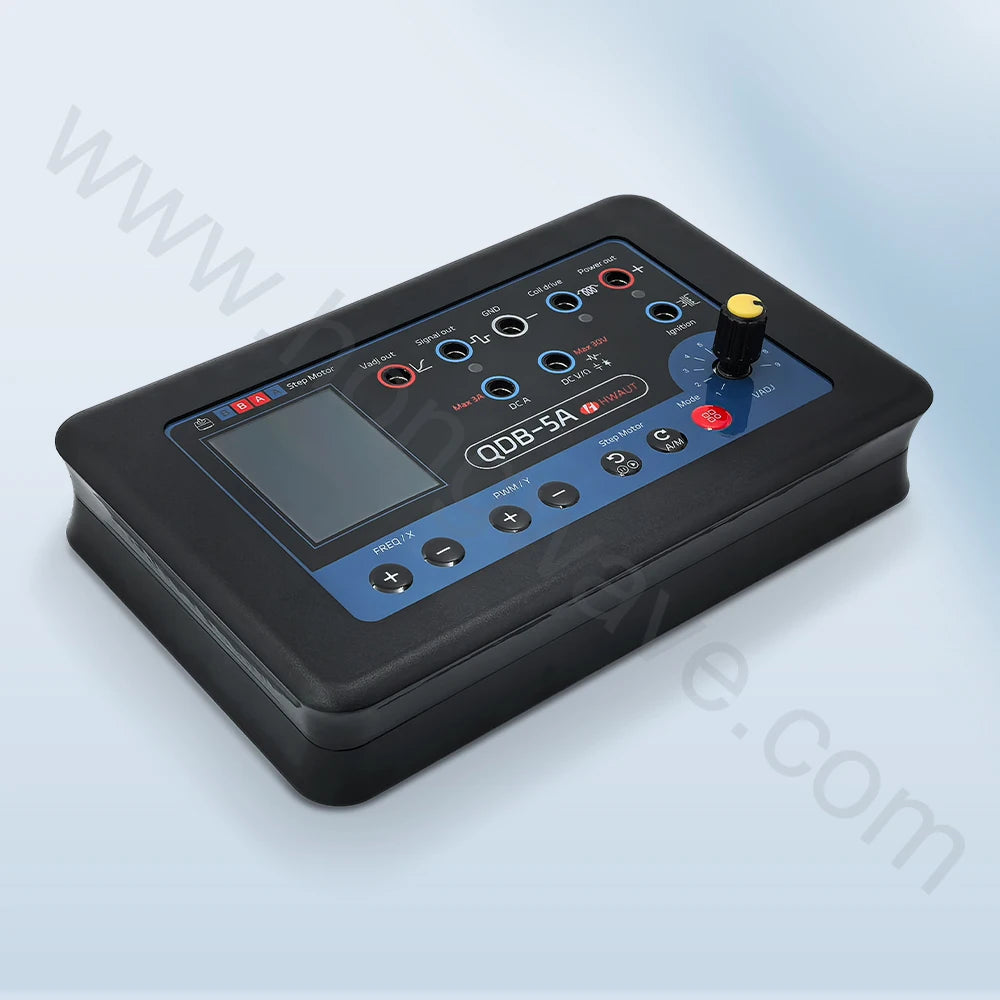

Portable and Durable Design: Compact handheld unit with operating temperature range of 0-55°C; perfect for automotive maintenance professionals and DIY mechanics.

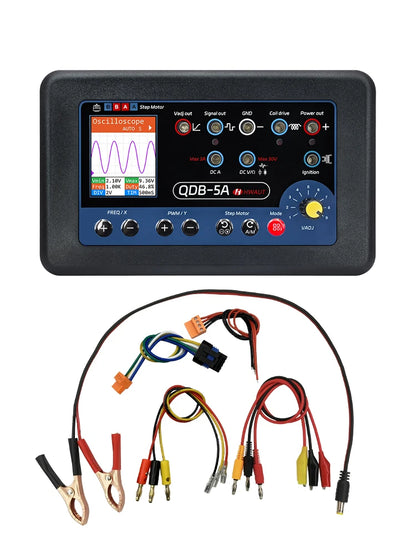

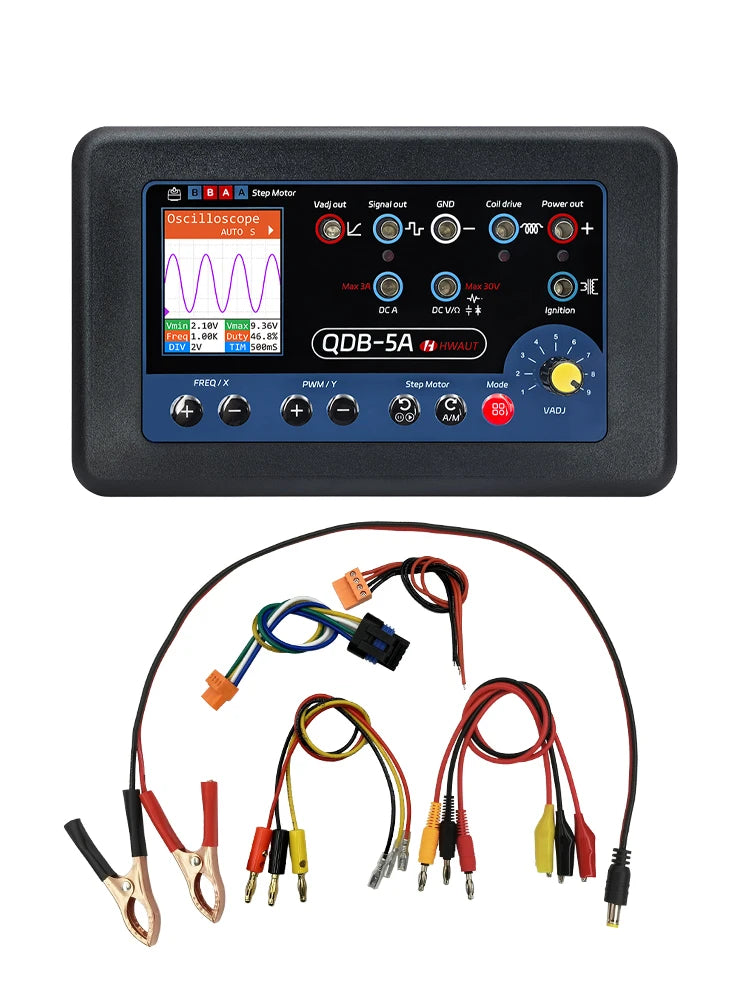

Package List:

1 x QDB-5A Ignition Coil Tester

1 x Power Cable (DC power adapter Not included)

3 x Test Connection Cables

3 x Single Plugs

1 x Idle Speed Stepper Motor Plug

1 x Stepper Motor Welding Cable
