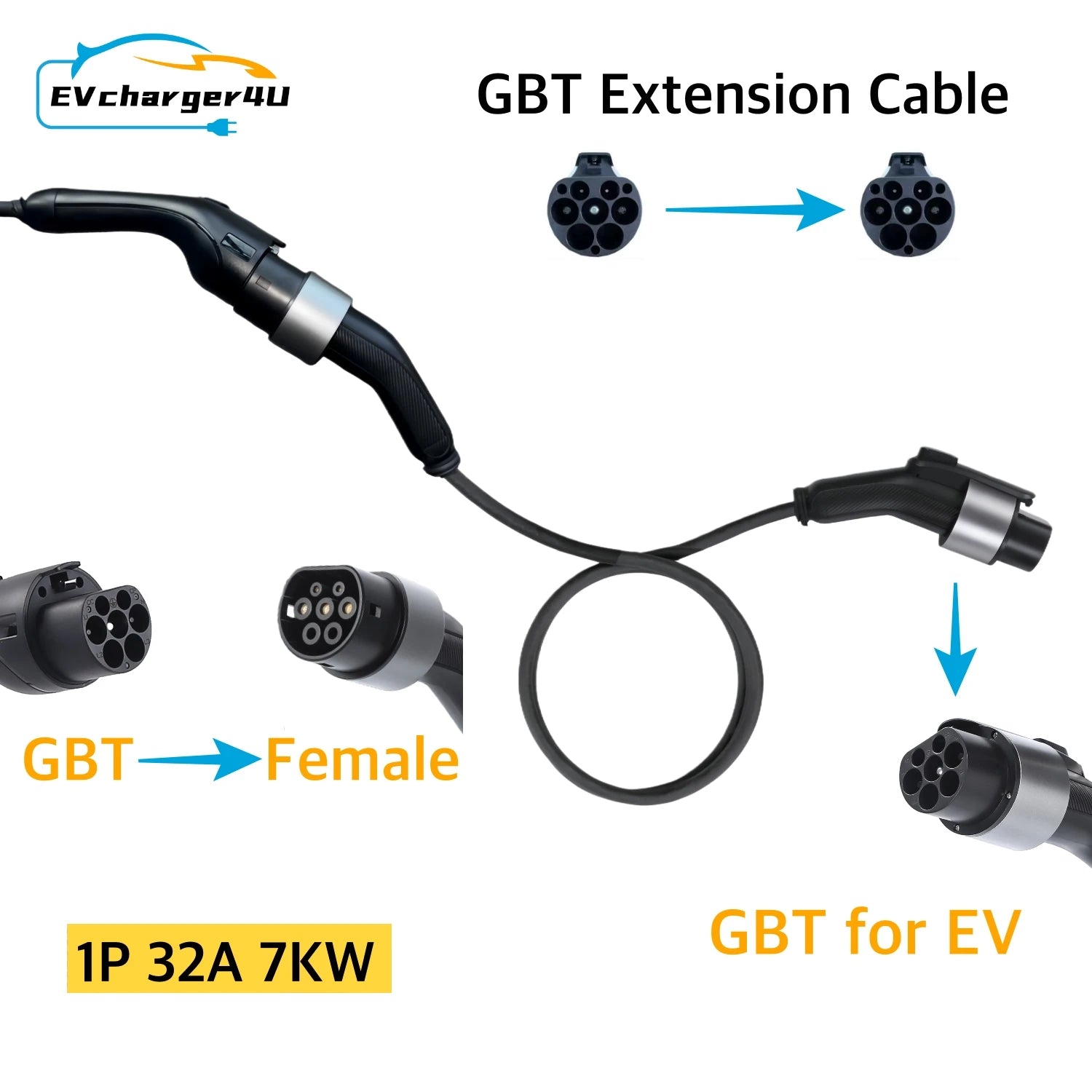

EVcharger4U GBT EXTENSION EV Charging Cable 4M 1Phase/3Phase 7kw 22kw for GB/T Portable Charger and Wallbox for Chinese EVS
EVcharger4U GBT EXTENSION EV Charging Cable 4M 1Phase/3Phase 7kw 22kw for GB/T Portable Charger and Wallbox for Chinese EVS
MADE TO ORDER • ESTIMATED DELIVERY 4–6 WEEKS
Couldn't load pickup availability
NZ-BASED SUPPORT • SECURE CHECKOUT • FITMENT HELP AVAILABLE
SPECIFICATIONS
Brand Name: Arvin
Cable length: 4m
Current: 16A/32A
High-concerned chemical: None
IP Rating: IP55
Length: 4m
Material: TPU
Origin: Mainland China
Plug Type: GBT
Power (W): 7KW
Voltage: 250V
Weight: 1.9KG
EVcharger4U GBT EXTENSION EV Charging Cable 4M 1Phase/3Phase 7kw 22kw for GB/T Portable Charger and Wallbox for Chinese EVS
Model No. and Cable specification
V1-32S: 3x6.0mm2+1x0.5mm2 (32A/1phase, 250V)
Electric Performance:
Protection rank: IP55
Fire retardant level: 94 V-0
Rated Current: 16A / 32A
Rated voltage: 250V / 480V
Insulation resistance: > 1000M ohm (DC 500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact resistance: 0.5m ohm Max
Coupled insertion force: >45N <80N
Operating temperature: -30C to 50C
Mechanical Testing
Mechanical life: no load plug in / pull out > 10000 times
Impact of external force: qualify 1m drop or 2 Ton vehicle run over
Materials Applied
Connector: by copper alloy with nickel bottom plating and 3um silver surface plating
Shell: white/ black by thermoplastic PC. Fire retardant. Other color optional by customizing
Cable: black with TPU jacket. Other color optional by customizing
Features
Product conforms to IEC61851-1:2010 mode 3 & B2, and EN62196-2:2017,EN62196-1:2014
IP55 protection; Fire-retardant; Pressure resistance; Abrasion resistance; Impact resistance
NOT SURE ABOUT FITMENT? Contact us with your vehicle year and variant before ordering.
SHIPPING & DELIVERY
SHIPPING & DELIVERY
This product is made to order. Estimated delivery is approximately 4–6 weeks.
Tracking information will be provided once your order has been dispatched, where available. Delivery times are estimates and may vary due to manufacturing, international freight or customs delays.
WHAT'S INCLUDED
WHAT'S INCLUDED
- Front bumper components
- Front grille
- Bonnet / hood
- Fender / guard components
- Exterior body panels
- Lighting components where specified
- Underbody / protection components where specified
- Mounting hardware where supplied
INSTALLATION & WARRANTY
INSTALLATION & WARRANTY
Professional installation is recommended. Body modifications, painting, wiring, alignment and adjustment may be required depending on the vehicle and kit configuration.
Warranty coverage varies by product and manufacturer. Damage caused by incorrect installation, misuse or modification may not be covered. Your rights under applicable New Zealand consumer law are not affected.
