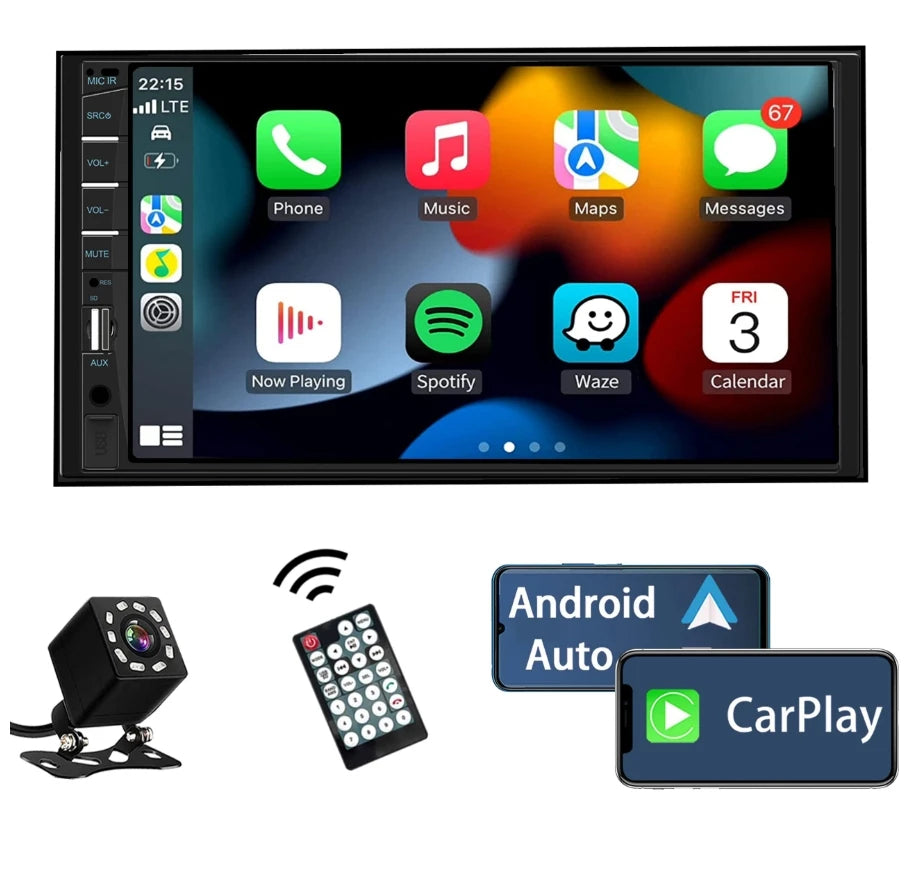

7 Inch 2 Din Car Stereo Carplay Android Auto HD Touchscreen Car Radio Receiver with Rear View Camera Mirror Link Bluetooth FM
7 Inch 2 Din Car Stereo Carplay Android Auto HD Touchscreen Car Radio Receiver with Rear View Camera Mirror Link Bluetooth FM
MADE TO ORDER • ESTIMATED DELIVERY 4–6 WEEKS
Couldn't load pickup availability
NZ-BASED SUPPORT • SECURE CHECKOUT • FITMENT HELP AVAILABLE
SPECIFICATIONS
Brand Name: Leadfan
Certification: CE,FCC,UL
Choice: yes
Display Size: 7"
High-concerned chemical: None
Item Weight: 0.8
Model Name: X6
Origin: Mainland China
Out Power: 4*60W
Placement: In-Dash
Resolution: 1024*600
Special Features: Radio Tuner
Voltage: 12 V

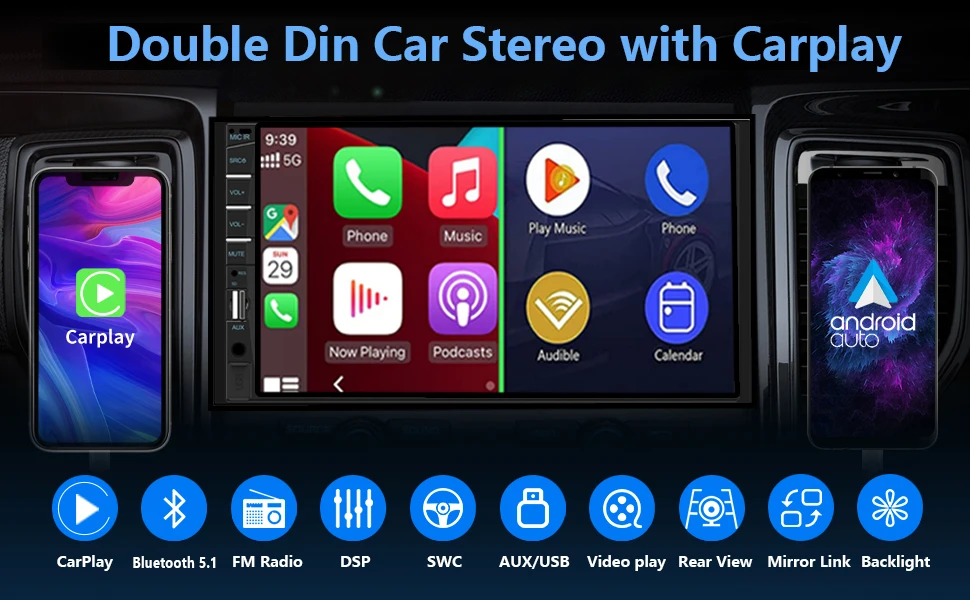

Main Features:
● Apple Carplay & Android Auto,phone mirror link
● Built-in Bluetooth technology for hands-free calling, music streaming. Internal microphone.
● Support backup camera input for easy parking
● FM tuner for real time radio stations
● USB input or U disk folder playback
● AUX input
● TF card
● car steering wheel control
● Colorful backlight settings
● Classified storage

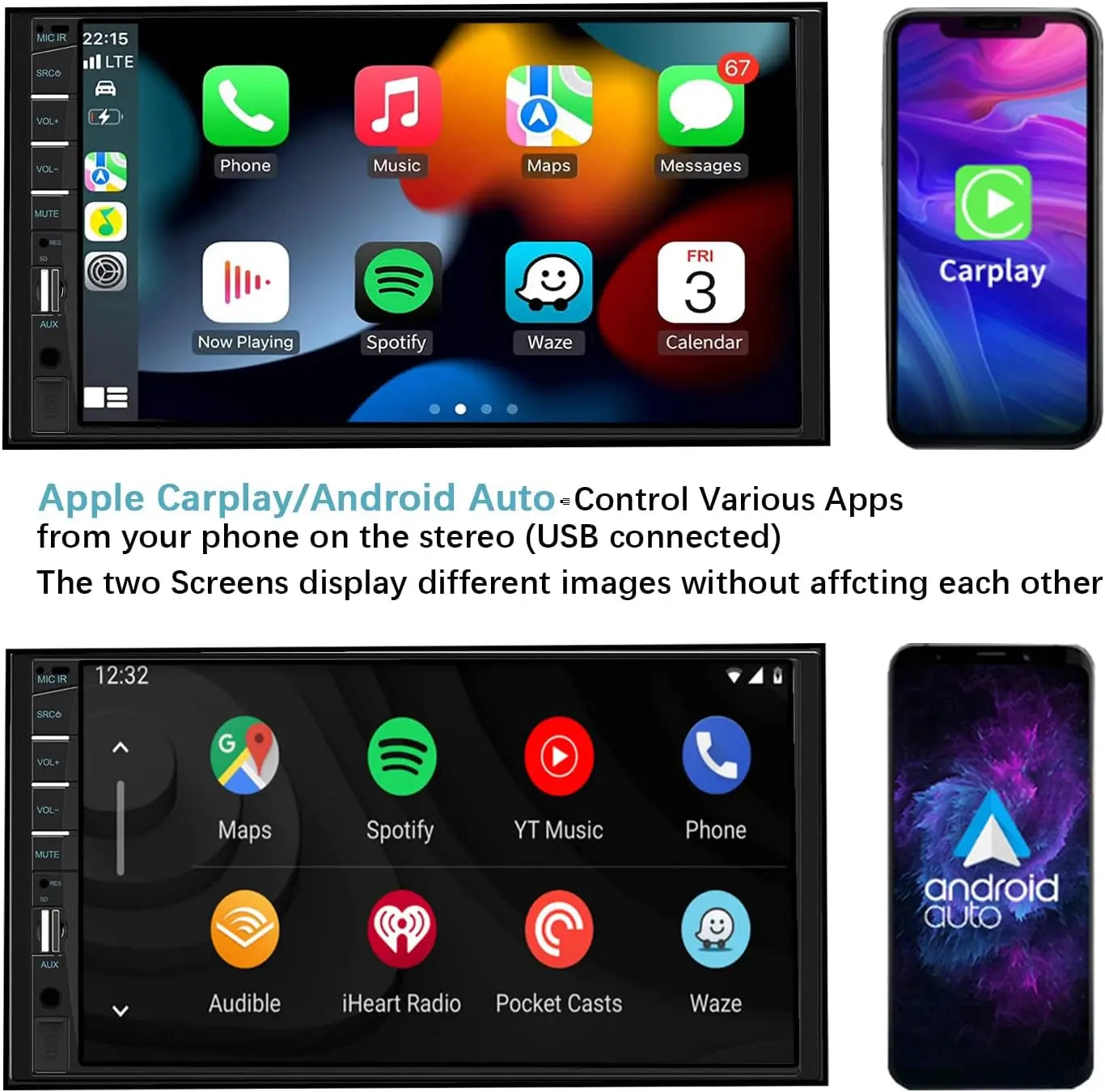

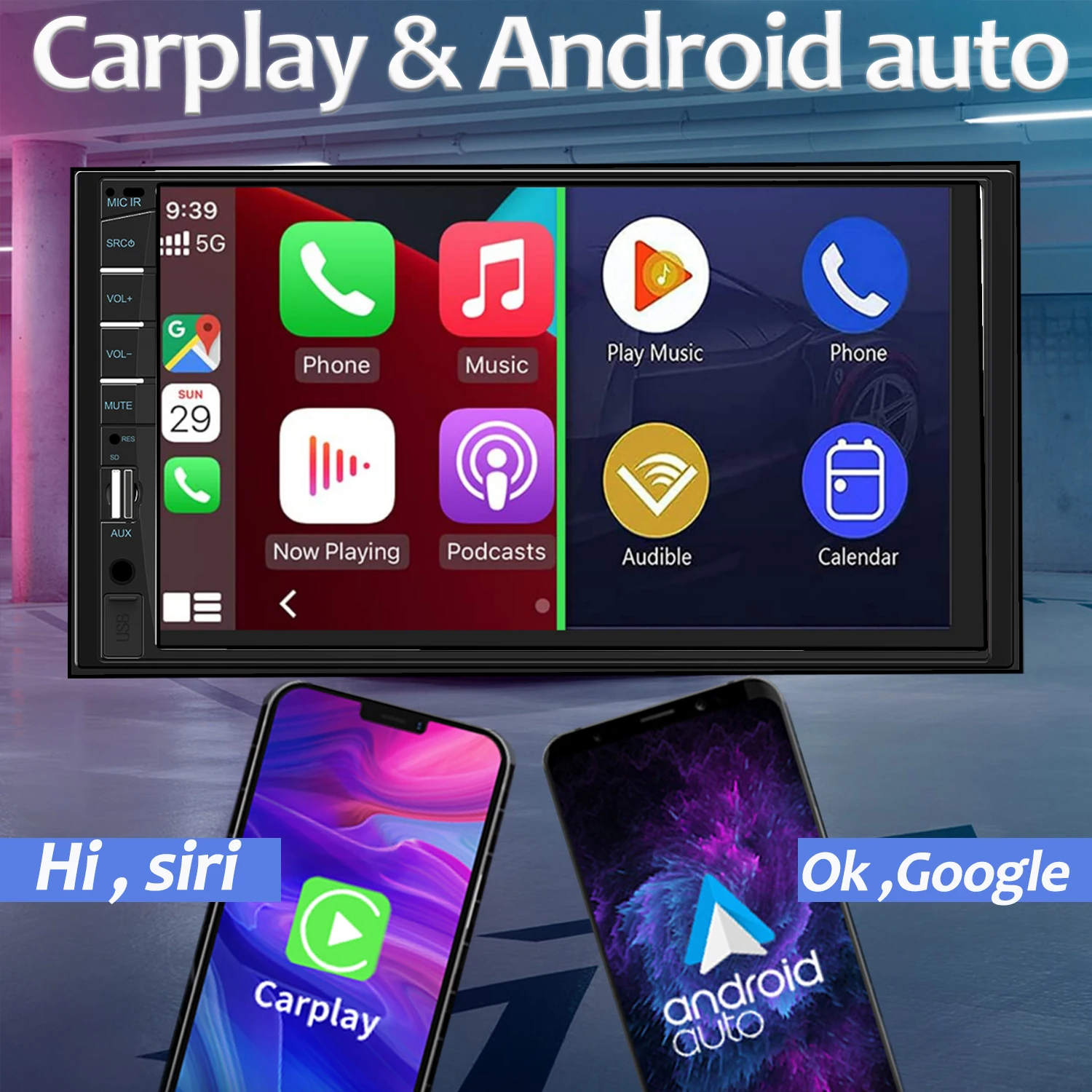

Apple carplay and Android auto
♦ Apple CarPlay & Android auto allows you to connect your iPhone & Android phone to your car and display a simplified iOS & Android interface on its infotainment system. You don't install apps specifically into CarPlay & Android auto. Instead, apps on your phone that are compatible with CarPlay & Android auto appear when you use the feature

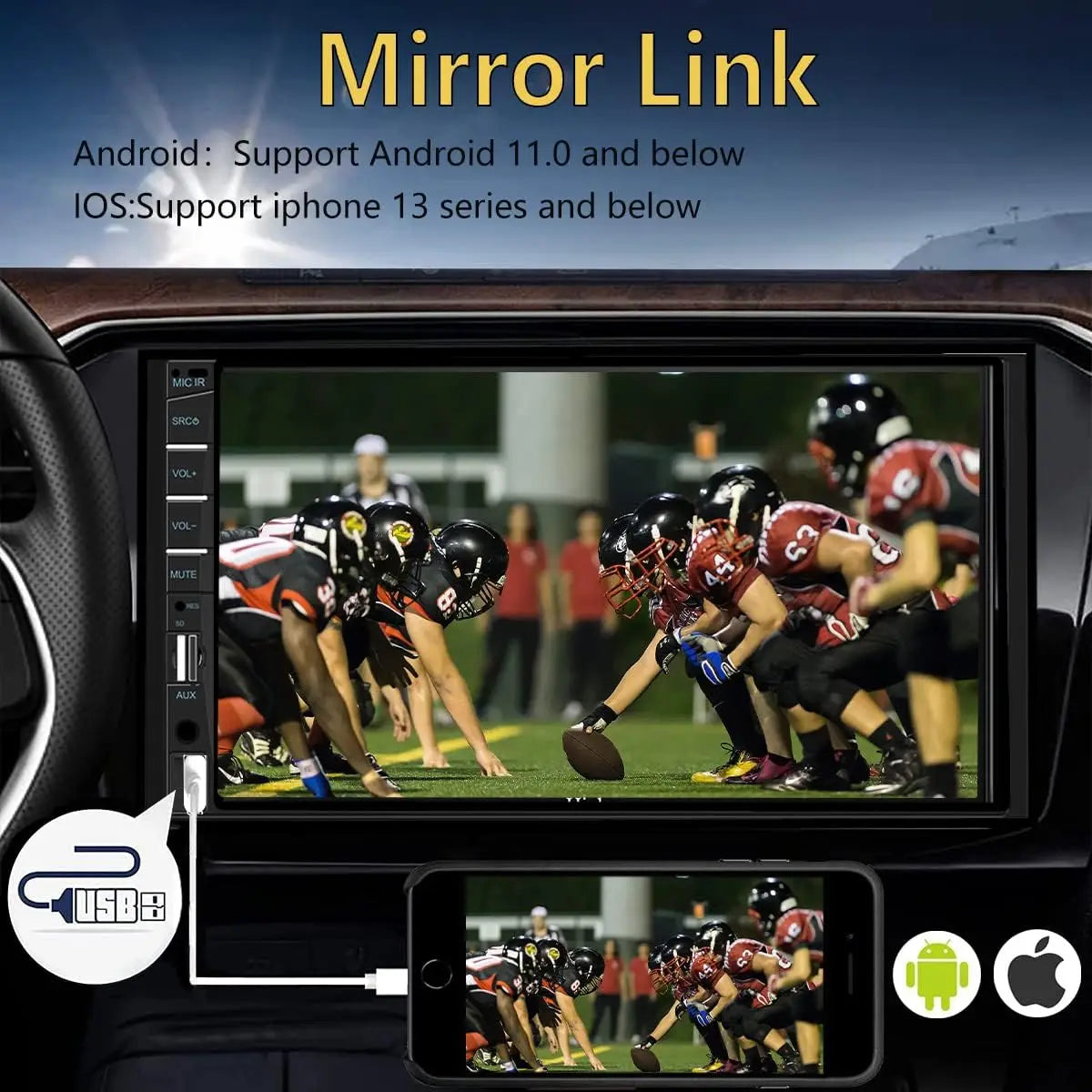

Mirror Link for Android and IOS
♦ Mirror Link through phone's original USB line can synchronize to the onboard screen. Through mirror-link, the in Dash Car Radio Video Multimedia Player will display the content from your cellphone screen synchronously, you are able to access high quality pictures, gps navigation, messages, internet, video and music together in the car.

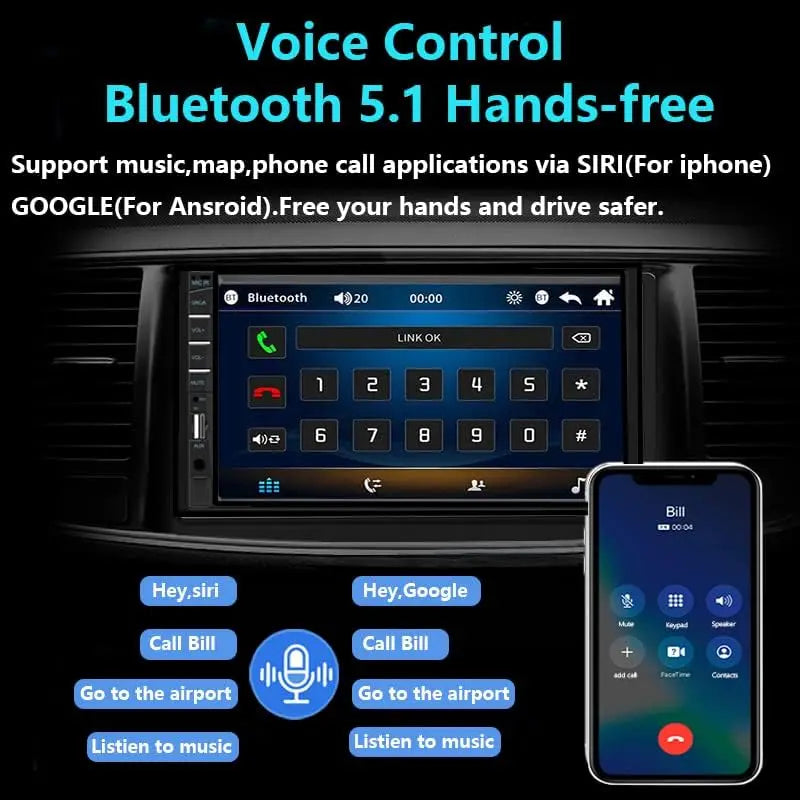

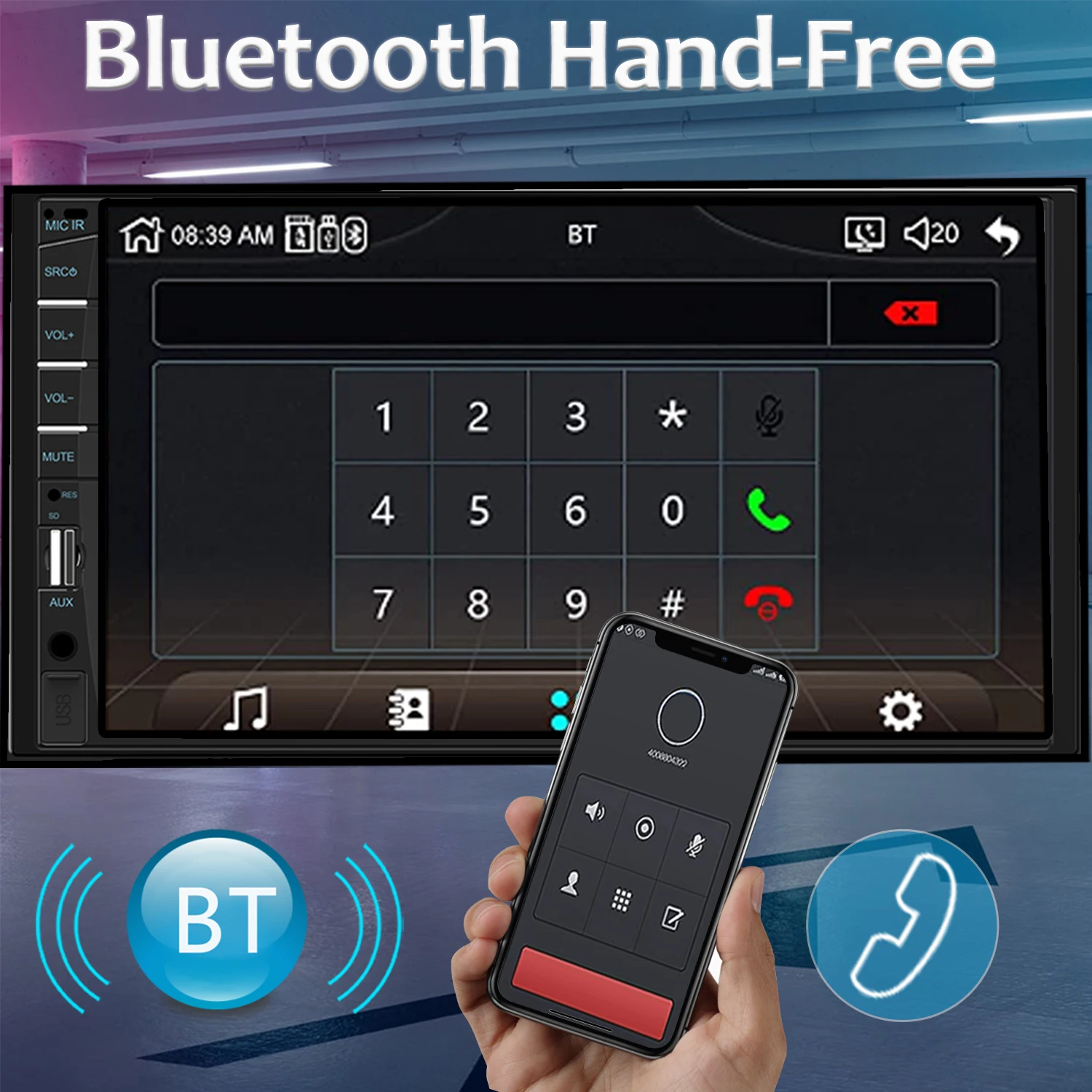

Bluetooth 5.1
♦ With the updated Bluetooth 5.1, which is more stable, faster, smoother and clearer, you can take and make calls in seconds by pairing it with your smartphone. Listen to your favorite music services and apps with the wireless Bluetooth audio stream, control tracks, volume, play, pause with a simple touch of a button.

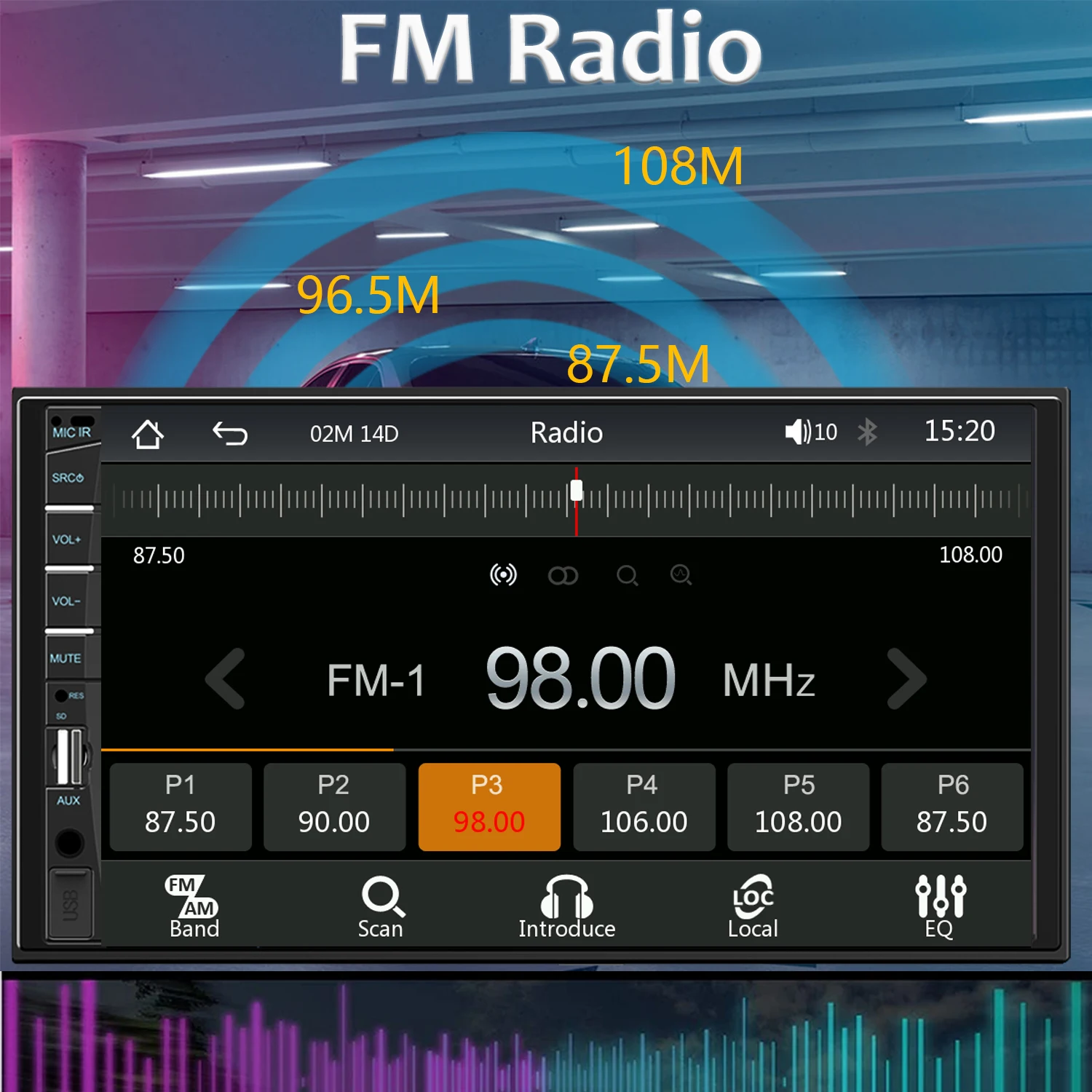

FM Radio
♦ In-dash bluetooth double din car audio receiver with FM tuner allows you to listen to real-time radio, weather forecast, news, etc. With this car radio you can enjoy stable reception, clear sound and a switchable tuner function even on the highway or in bad weather

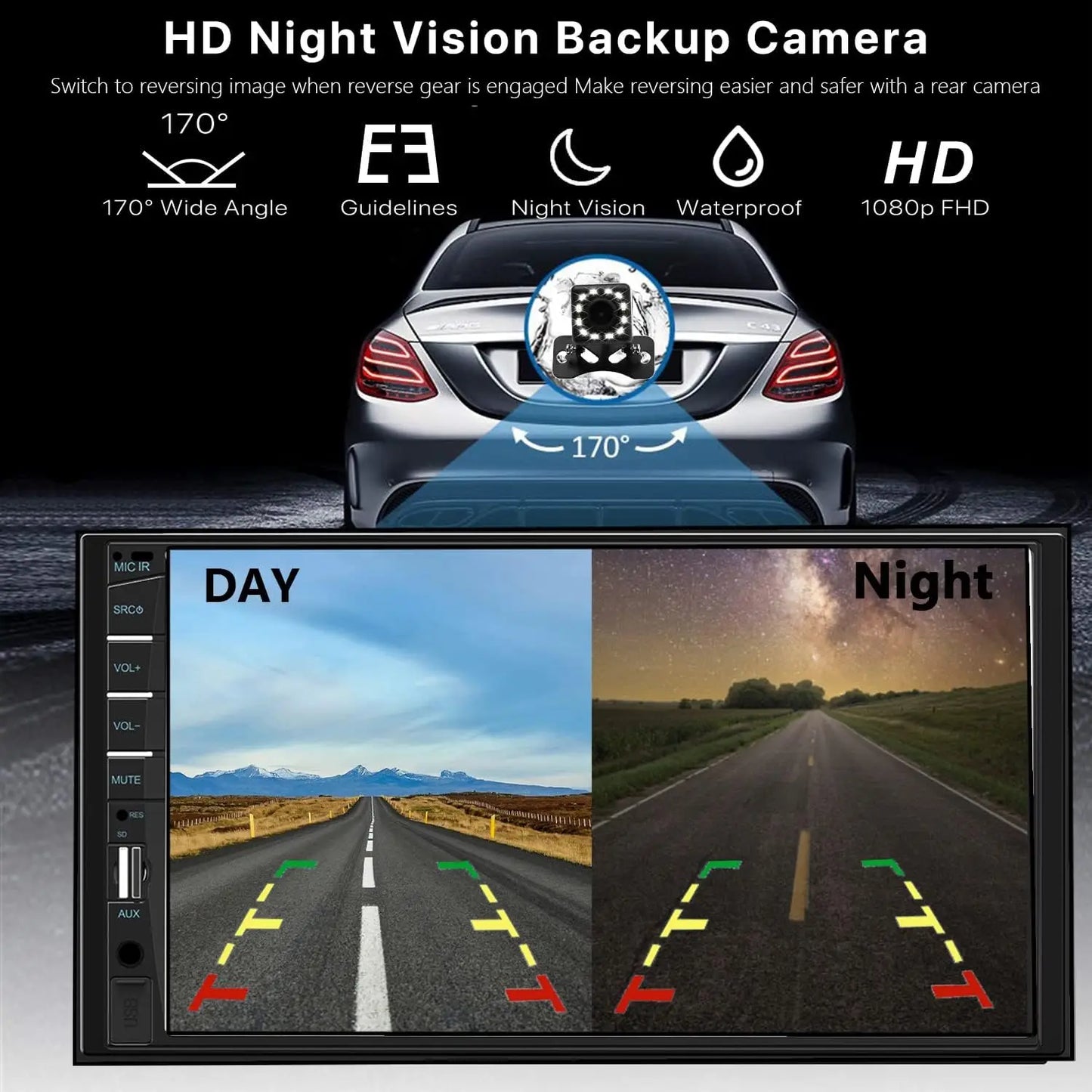

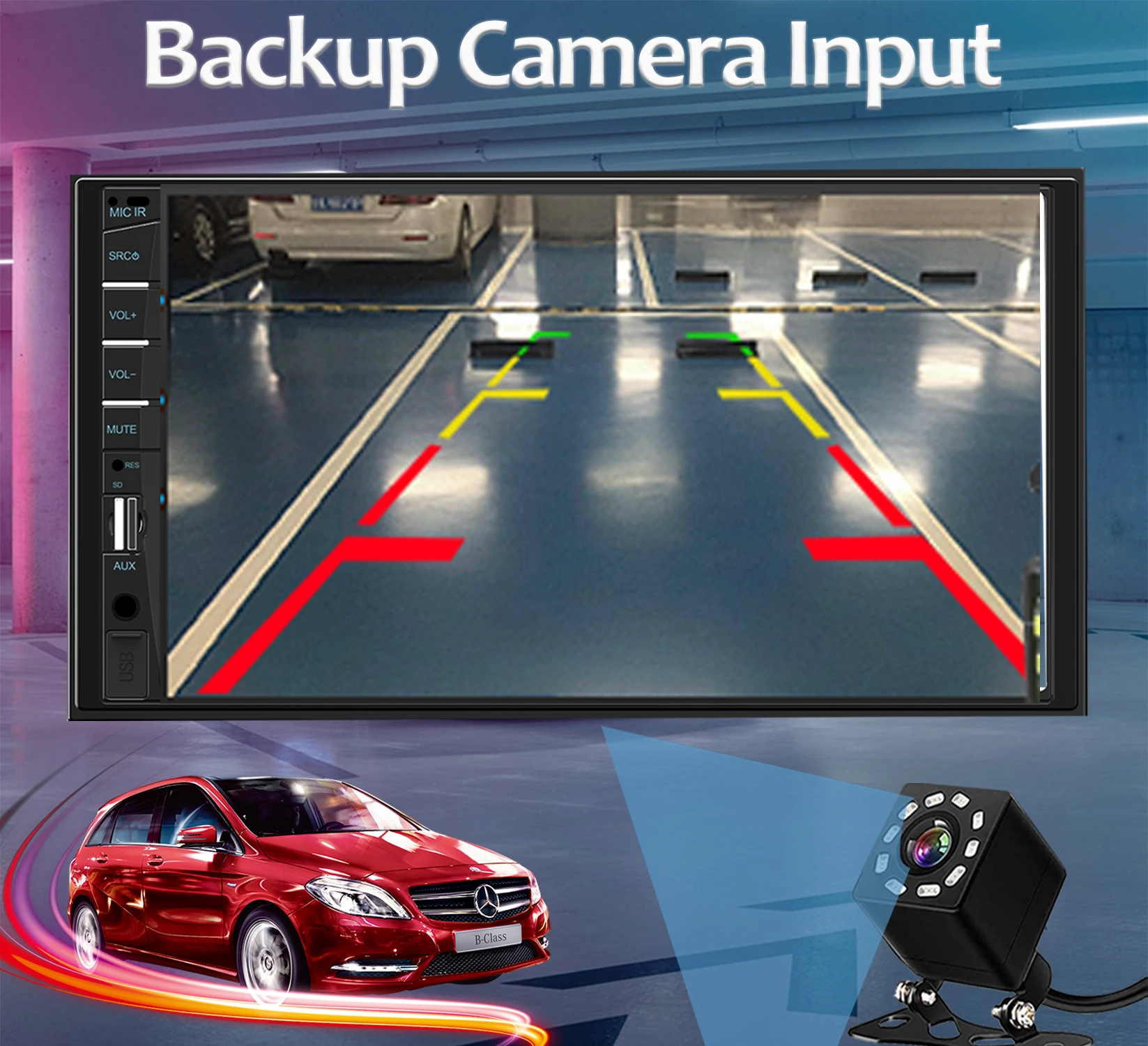

Rear View Camera
♦ The double din car stereo device is equipped with 12 LED light reversing cameras, waterproof HD night vision, 170° wide angle, super anti-interference, The carplay stereo will automatically switch to reverse image when the car shifts into reverse, can help you park more safely. In addition, its installation is very convenient and the signal is more stable.

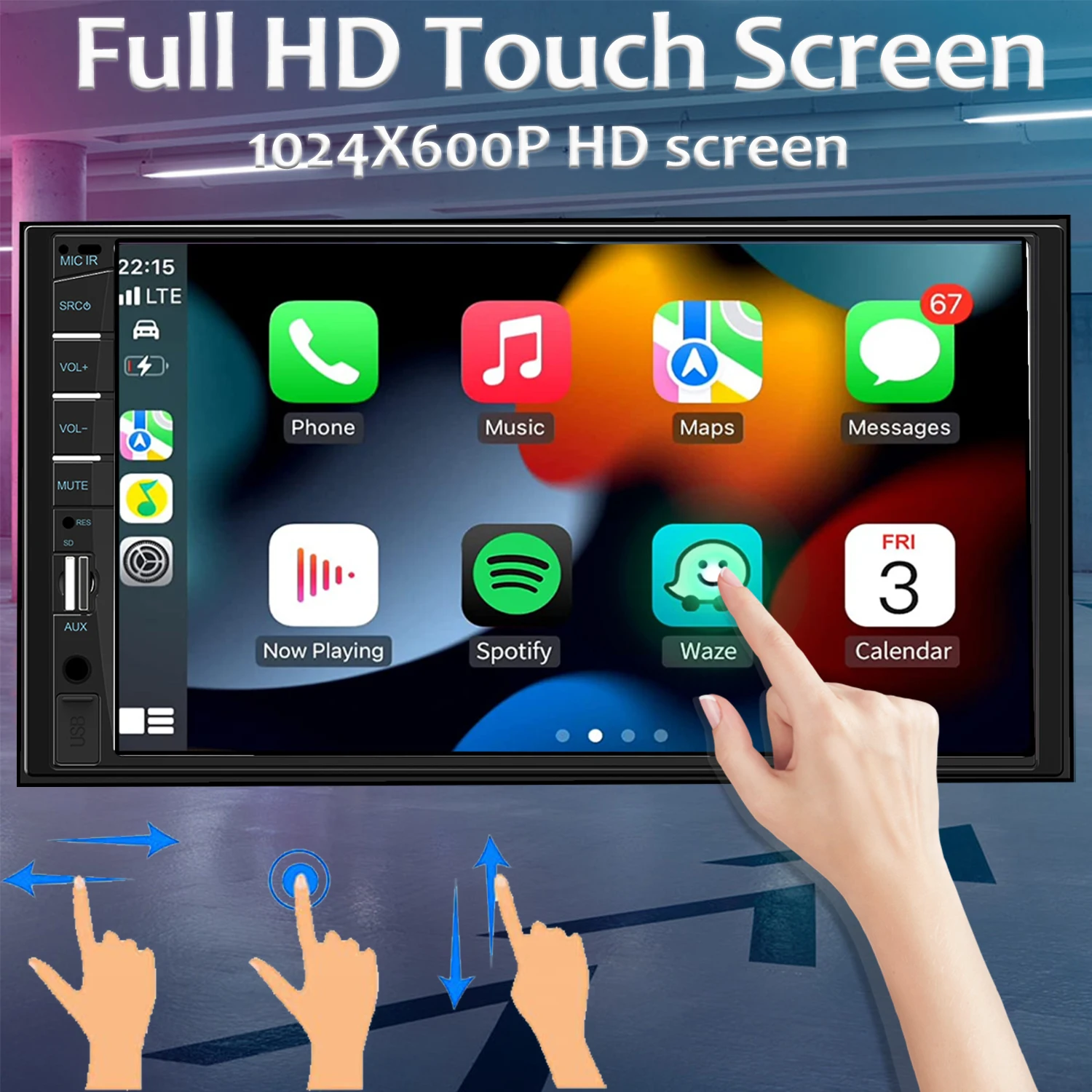

7 Inch HD Touchscreen
♦ The double din car stereo that has been upgraded to 7 Inches Capacitive Touch Screen and clearer colors and better touch sensitivity. On the long road, you can watch your favorite TV shows and movies with this MP5 player, which can satisfy your excellent video viewing experience.

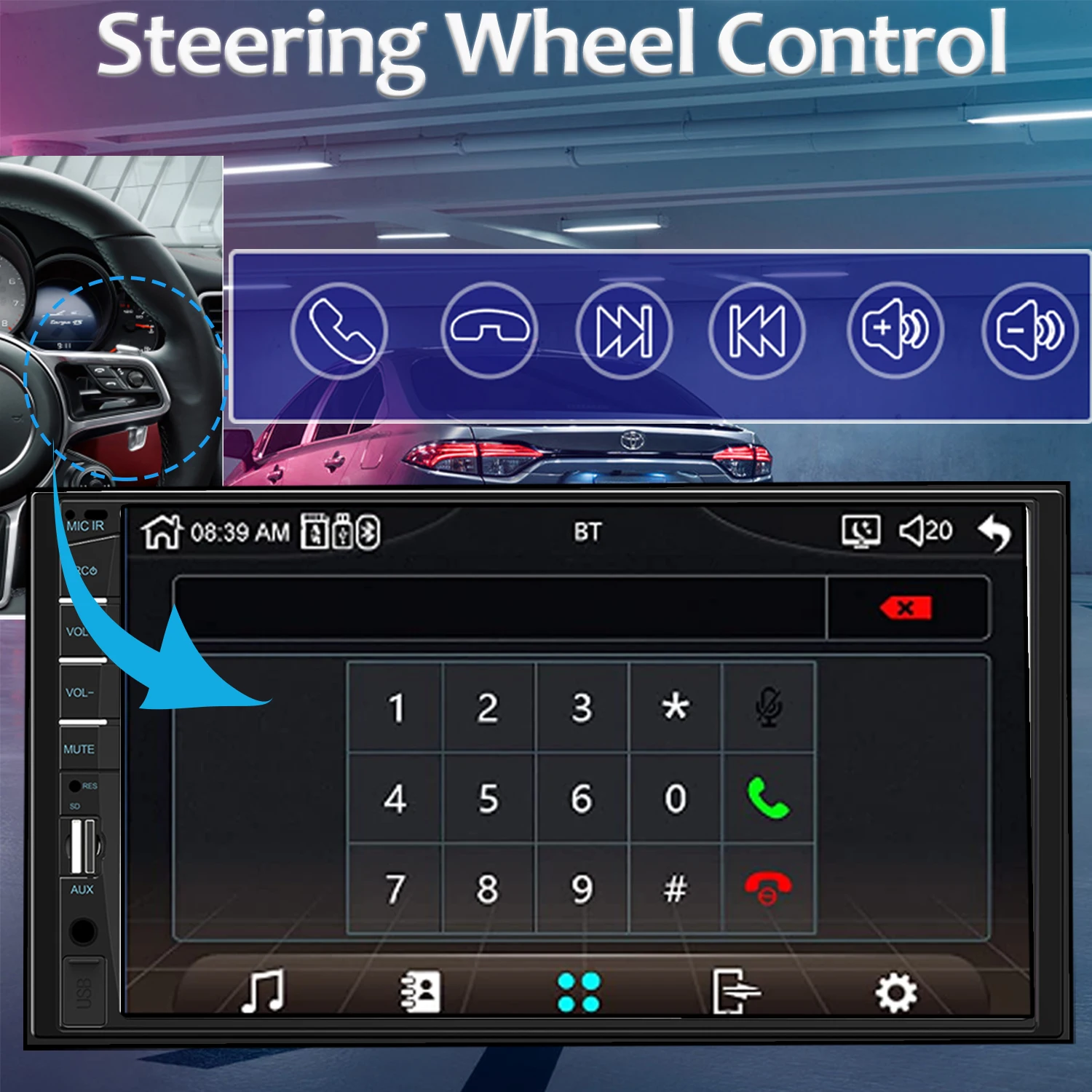

Steering Wheel Control
♦ You can use the vehicle's steering wheel buttons to answer and end calls, play music, change radio channels, increase or decrease volume, etc, all of which make your journey more comfortable, which greatly improves driving safety.

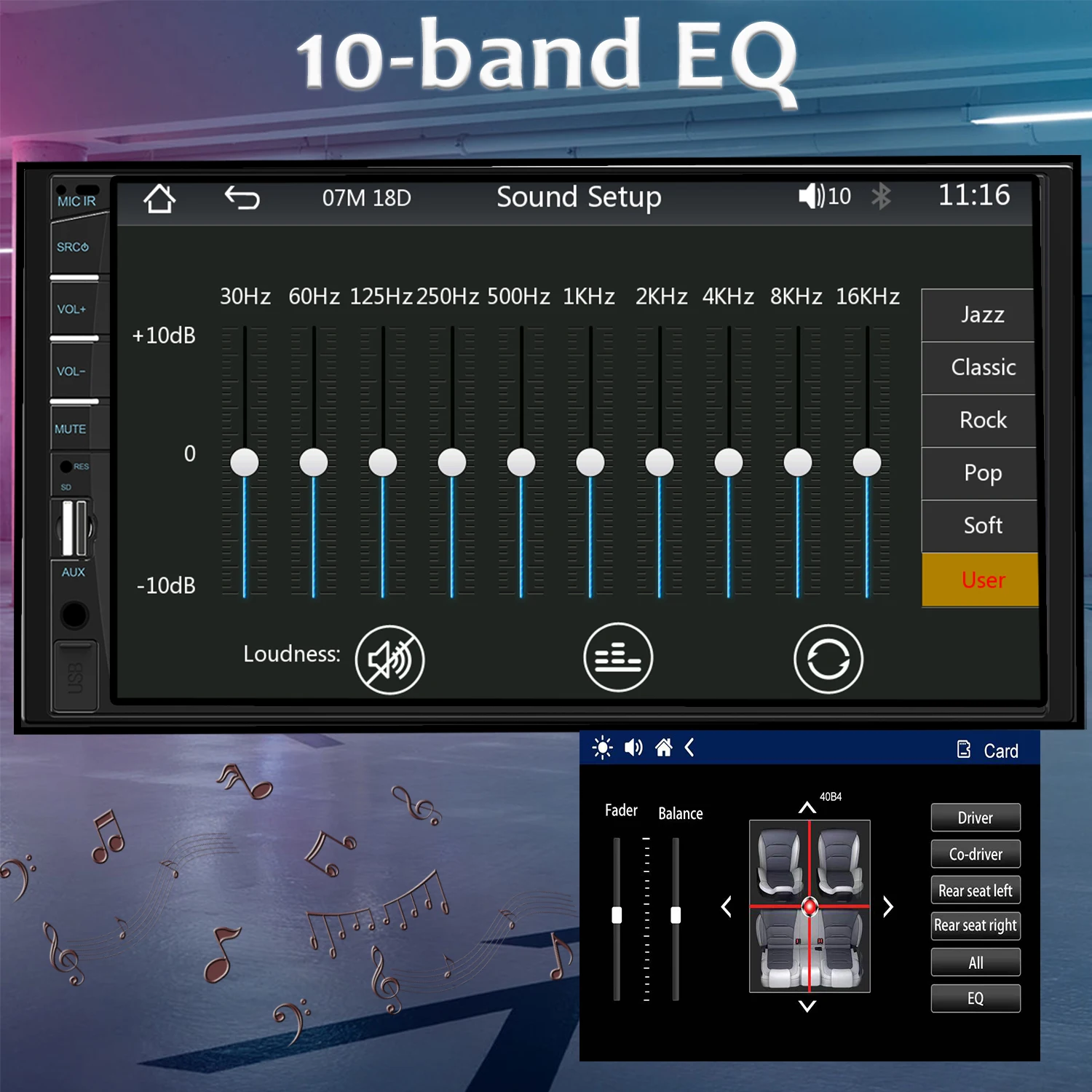

Built-in DSP
♦ With a built-in preset EQ and user customized 10-band EQ options, you can adjust Vbass, Balance, Emperor, EQ, Loudness, Filter, etc. according to your personal preferences, so as to correct the defects such as excessive or insufficient hearing in this frequency band, which will provide a wonderful listening experience.

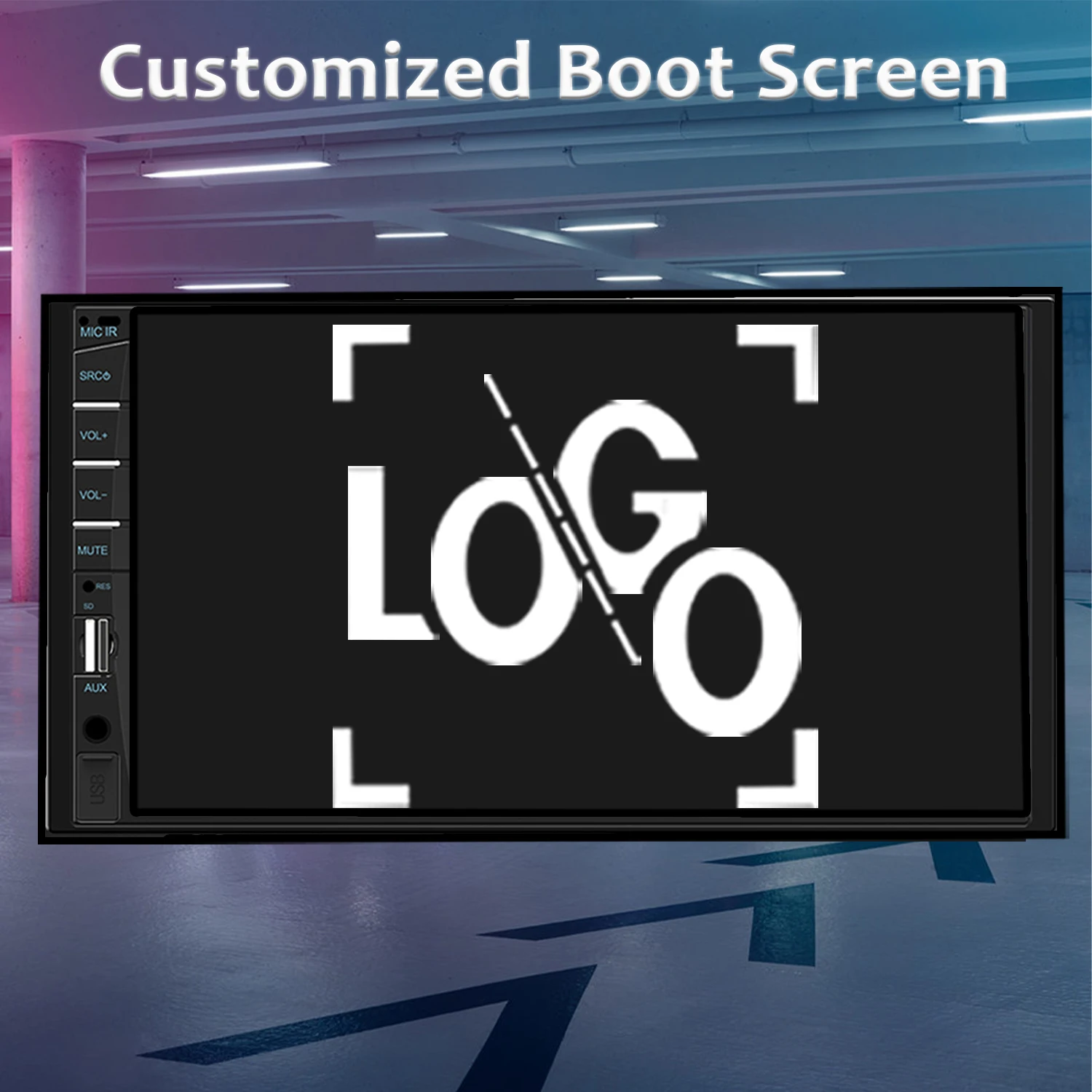

Customized Boot Screen
♦ Support U disk to read picture data, you can download your favorite picture as the boot screen.
♦ The best resolution for pictures: 1024*600.
♦ Note: The Image Format is JPG, Not PNG.
♦ Method: Create a new folder named "LOGO" in your U disk, put your favorite photos in it, so that the car can recognize the pictures.

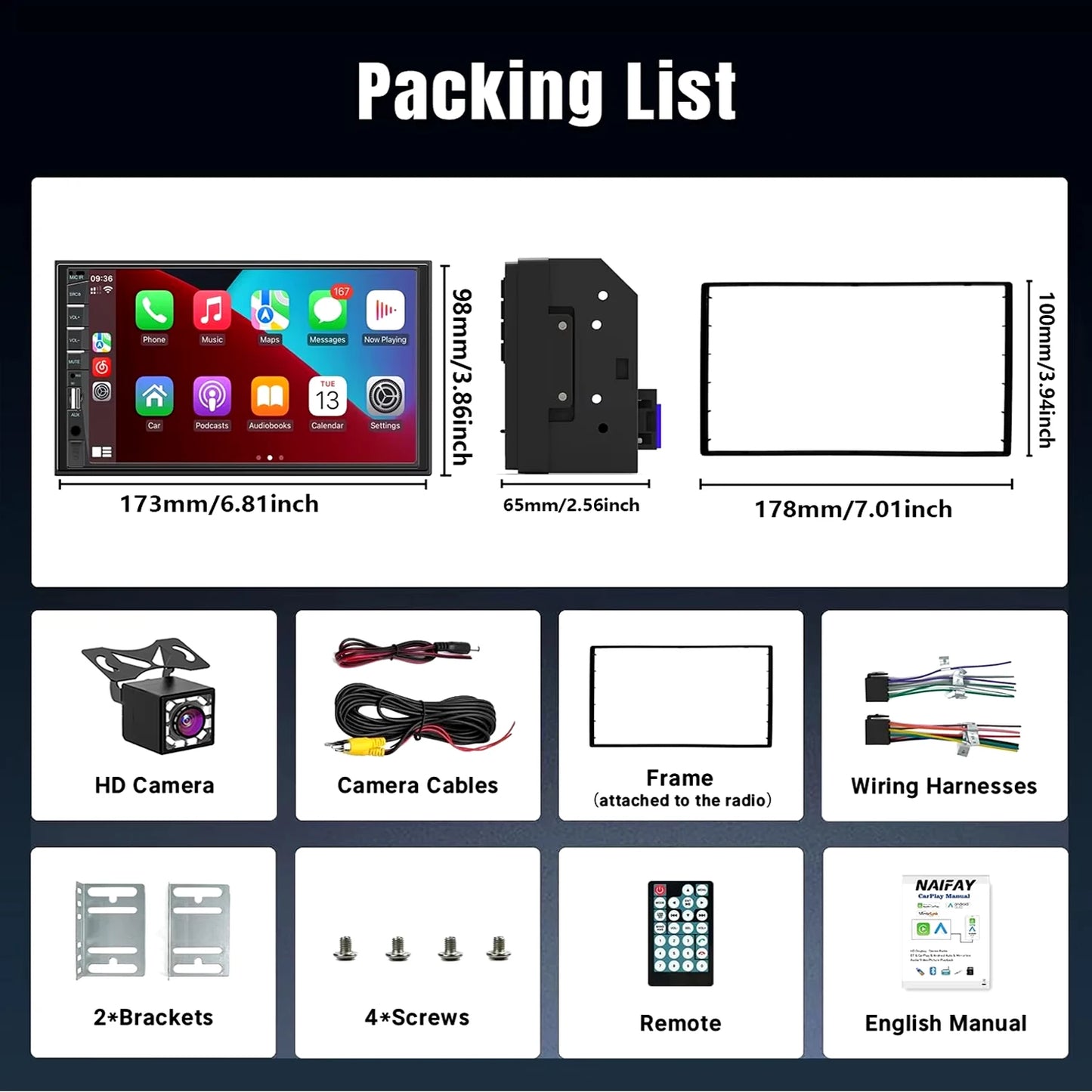

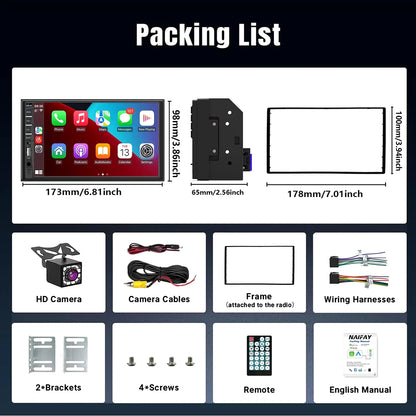

Important note before ordering-please reconfirm your dashboard size.
✔Please read our list carefully and measure whether your dashboard opening size is one of the following three sizes.
1. The sizes for car series used commonly in the United States and Europe : 173 (W) × 96 (H) mm, 6.81 (W) × 3.78 (H) inches.
2. Commonly used sizes of car series in Asia: 178(W)×100(H)mm, 7(W)×4(H) inches
3. Other commonly used sizes：188(W)×116(H)mm, 7.4(W)×4.56(H)inch
If you find that our audio size does not match the size of your dashboard, you can find the correct after-sales accessories by searching for the year, brand and model of the vehicle.
Attention：

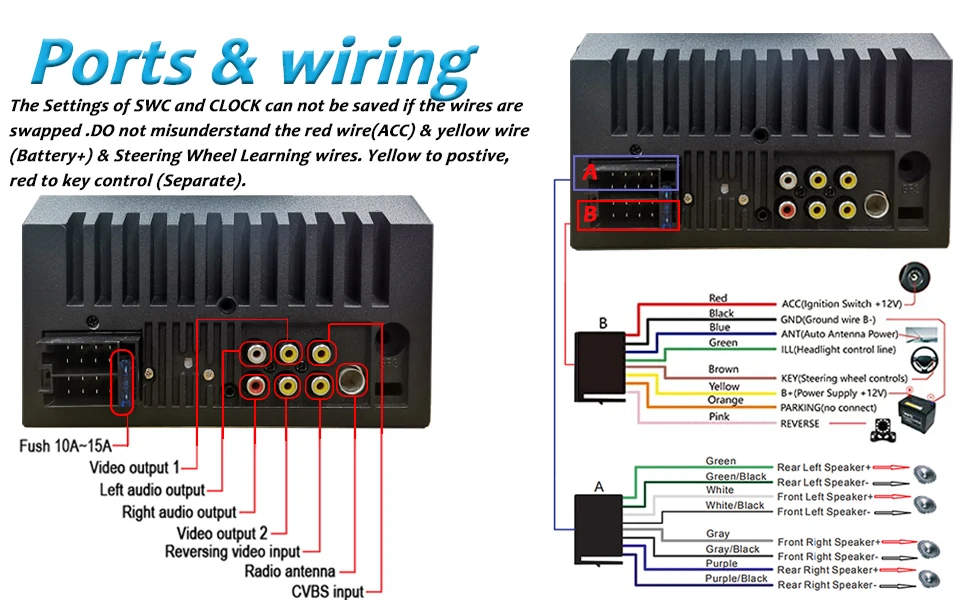

● The working voltage of this car stereo is 12V, it can't be used for big trucks with 24V, and the car stereo will be damaged when the voltage is higher than 16V.
● The car stereo has a memory function. If the ACC wire (red wire) and the B+ wire (yellow wire) are connected reversely during the installation process, the product will have no memory function after the power is off. Thanks!
● Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.
● Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.
FAQ
Q: Don't work?Unable to turn on?
✔ If you encounter this kind of problem, please confirm that your car is 16V and below. And then please check your wiring. First, the yellow wire needs to be connected to the positive pole of the battery, the black wire needs to be connected to the negative pole of the battery, and then the red wire needs to be connected to your ACC (car key hole), so as to ensure Your product has sufficient power supply, and the correct connection of each wiring can ensure the normal use of the product.
Q: Can't connect with Bluetooth?
✔ Please turn on the Bluetooth of the mobile phone before the car radio is turned on.
✔ Please delete the bluetooth record of the mobile phone and re-match the connection.
Q: There is no sound right after installation?
✔ It is usally a wiring error or the original car speaker wire is short-circuited with iron. Here are the steps to check it.
✔ Check if the speaker cable is short-circuited, if so, please reconnect the wiring.
✔ Check how many speaker cables does the original speaker have. If there are only 2 speaker cables then it means that the original car line does not match our unit. In this case, you need to re-organize the original car line. One speaker must lead to 2 speaker wires; 2 speakers must be have 4 speaker cables, only in this way, the unit can work properly.
Q: Why can't I search for FM station?
✔ The antenna plug is not fully inserted, the antenna is disconnect or the line is disconnect.
✔ Search channel, on the FM menu page, perform a channel scan search. If the above 2 points do not work, please unplug the antenna plug and find a screwdriver or a metal strip to insert into the antenna port to see if it works or not.
Q: Does it support subwoofer output?
✔ Yes, our radio supports an external subwoofer. Connection method: Connect to L-OUT and R-OUT, and then connect the blue wire of the B harness to the subwoofer. See the wiring diagram for details.
